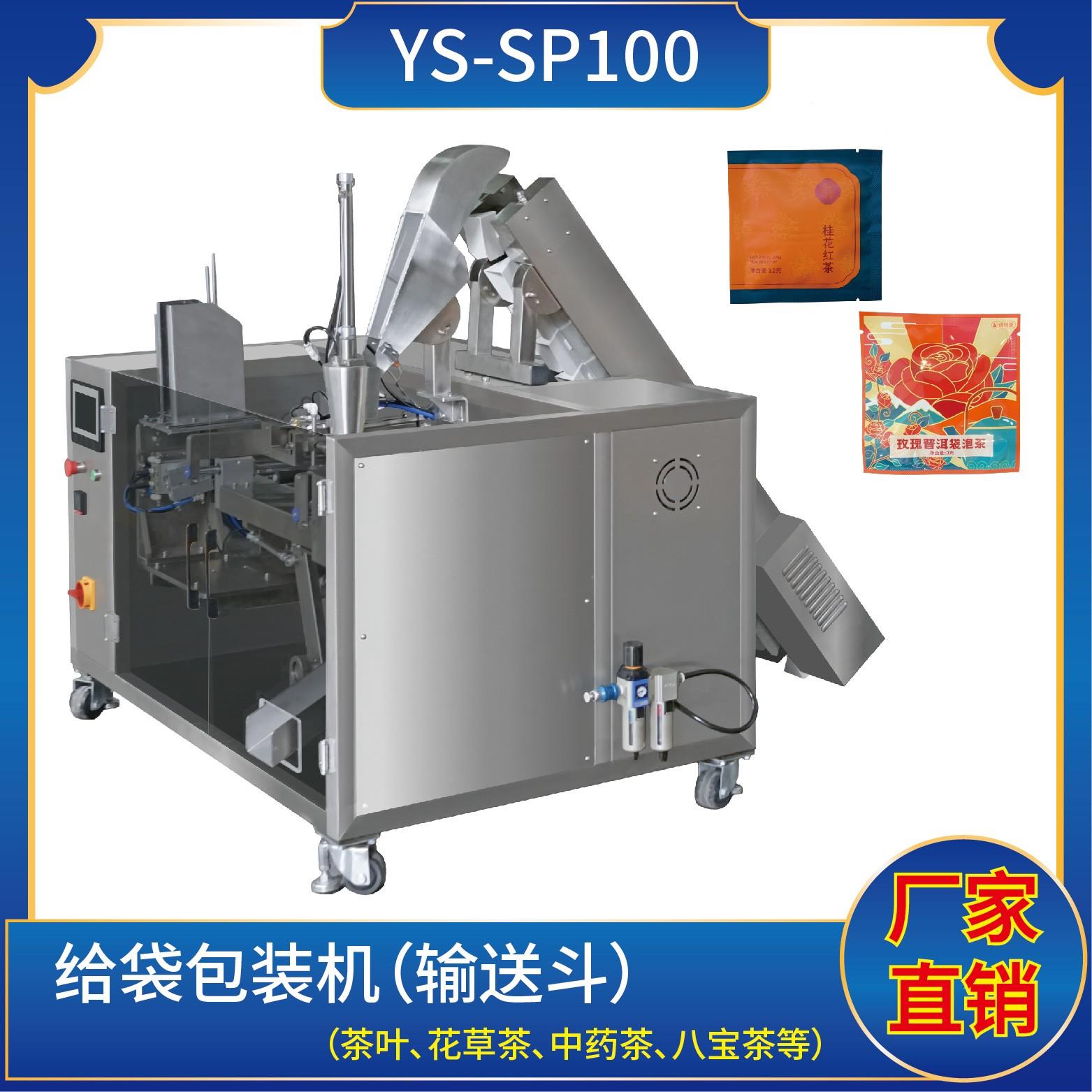

YS-SP100水平給袋包裝機
YP-SP100 給袋式包裝機
特 點 Characteristic
1、適用于茶葉行業中三角包袋、平面袋、小罐袋袋泡茶的計量包裝。
Suitable for measuring and packaging tea in triangular bags, flat bags, and small jar bags in the tea industry.
2、包裝流程全自動，可充氮?dú)?，無需人工操作?？筛鶕?jù)充填物料的性質選配不同的下料結構，且可根據客戶要求配置打印批號等功能。
The packaging process is fully automatic and can be filled with nitrogen without the need for manual operation. Different cutting structures can be selected according to the properties of the filling material, and printing batch numbers and other functions can be configured according to customer requirements.
3、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material: composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
封口方式 Sealing Type
預制袋Prefab bag
技術參數
Technical Parameters
計量范圍：1 - 15 g
Measuring Scope
預制袋尺寸：長( L ) : 80 - 130 mm
Bag Size 寬( W ) : 60 - 120 mm
包裝速度：30 - 40 bags/min
Packing Speed
外型尺寸：1500 * 1800 * 1350 mm
Dimension ( L * W * H )
整機重量：200 kg
Weight
總 功 率：220V / 50-60Hz / 2.6kw
Total Power
1、適用于茶葉行業中三角包袋、平面袋、小罐袋袋泡茶的計量包裝。
Suitable for measuring and packaging tea in triangular bags, flat bags, and small jar bags in the tea industry.
2、包裝流程全自動，可充氮?dú)?，無需人工操作?？筛鶕?jù)充填物料的性質選配不同的下料結構，且可根據客戶要求配置打印批號等功能。
The packaging process is fully automatic and can be filled with nitrogen without the need for manual operation. Different cutting structures can be selected according to the properties of the filling material, and printing batch numbers and other functions can be configured according to customer requirements.
3、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material： composite film, such as： pure aluminum, aluminum plating and other prefabricated bags.
計量范圍：1 - 15 g
Measuring Scope
預制袋尺寸：長( L ) : 80 - 130 mm
Bag Size 寬( W ) : 60 - 120 mm
包裝速度：30 - 40 bags/min
Packing Speed
外型尺寸：1500 * 1800 * 1350 mm
Dimension ( L * W * H )
整機重量：200 kg
Weight
總 功 率：220V / 50-60Hz / 2.6kw
Total Power
